RightMark Audio Analyzer test report
| Testing device | Realtek HD Audio output |
| Sampling mode | 24-bit, 96 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.0 dB / 0.1 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.05, -0.04 |
Excellent |
| Noise level, dB (A) | -93.9 |
Very good |
| Dynamic range, dB (A) | 93.3 |
Very good |
| THD, % | 0.0039 |
Very good |
| THD + Noise, dB (A) | -83.8 |
Good |
| IMD + Noise, % | 0.0069 |
Excellent |
| Stereo crosstalk, dB | -83.7 |
Very good |
| IMD at 10 kHz, % | 0.0070 |
Excellent |
| General performance | Very good |
Frequency response
| From 20 Hz to 20 kHz, dB | -0.12, +0.05 |
| From 40 Hz to 15 kHz, dB | -0.04, +0.05 |

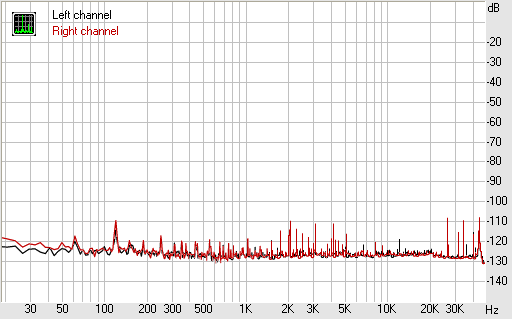

Noise level
Left |
Right |
|
| RMS power, dB | -93.1 |
-93.2 |
| RMS power (A-weighted), dB | -94.0 |
-93.9 |
| Peak level, dB FS | -76.2 |
-74.7 |
| DC offset, % | -0.0 |
-0.0 |

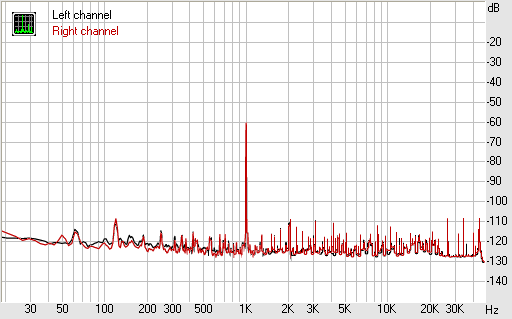

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +92.5 |
+93.0 |
| Dynamic range (A-weighted), dB | +92.9 |
+93.6 |
| DC offset, % | -0.00 |
+0.00 |

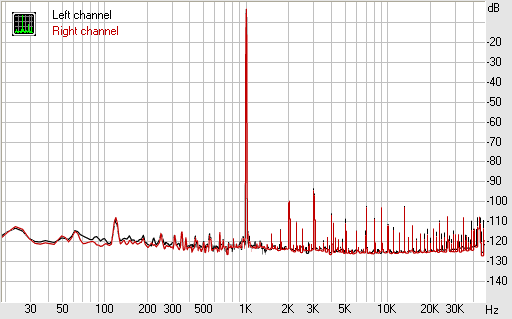

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0039 |
+0.0039 |
| THD + Noise, % | +0.0063 |
+0.0060 |
| THD + Noise (A-weighted), % | +0.0065 |
+0.0063 |

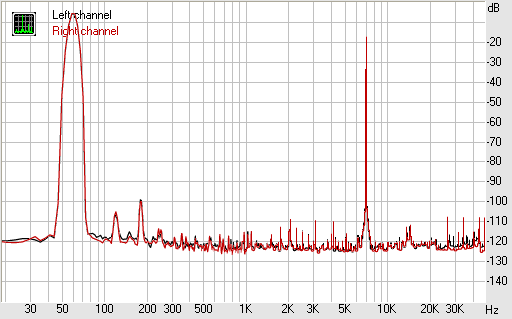

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0071 |
+0.0067 |
| IMD + Noise (A-weighted), % | +0.0063 |
+0.0059 |

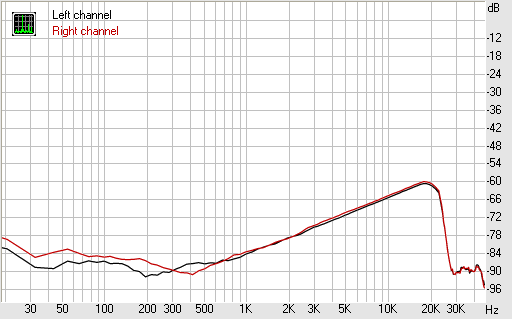

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -86 |
-84 |
| Crosstalk at 1000 Hz, dB | -83 |
-82 |
| Crosstalk at 10000 Hz, dB | -64 |
-64 |

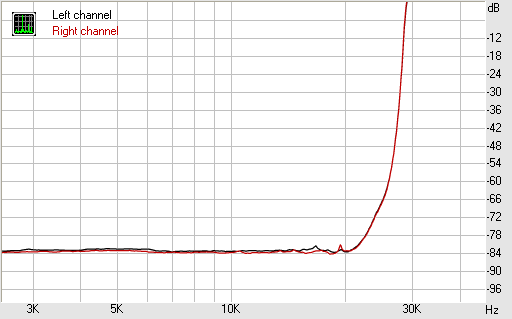

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0075 |
0.0071 |
| IMD + Noise at 10000 Hz, | 0.0069 |
0.0065 |
| IMD + Noise at 15000 Hz, | 0.0070 |
0.0068 |
