RightMark Audio Analyzer test report
| Testing device | Realtek HD Audio output |
| Sampling mode | 24-bit, 44 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.0 dB / 0.1 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.07, -0.06 |
Excellent |
| Noise level, dB (A) | -92.1 |
Very good |
| Dynamic range, dB (A) | 92.3 |
Very good |
| THD, % | 0.0035 |
Very good |
| THD + Noise, dB (A) | -82.4 |
Good |
| IMD + Noise, % | 0.015 |
Very good |
| Stereo crosstalk, dB | -84.7 |
Very good |
| IMD at 10 kHz, % | 0.089 |
Good |
| General performance | Very good |

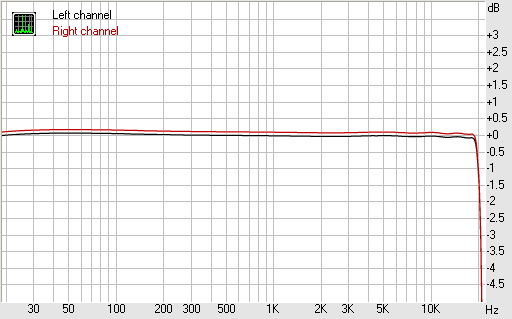

Frequency response
| From 20 Hz to 20 kHz, dB | -0.78, +0.07 |
| From 40 Hz to 15 kHz, dB | -0.06, +0.07 |

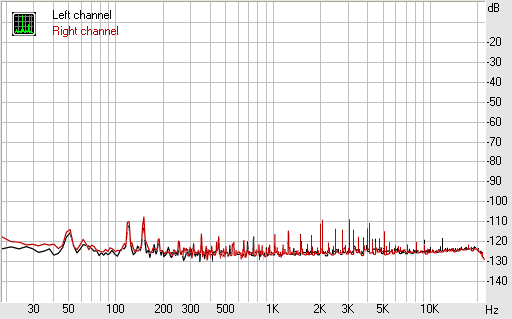

Noise level
Left |
Right |
|
| RMS power, dB | -90.9 |
-90.9 |
| RMS power (A-weighted), dB | -92.2 |
-92.0 |
| Peak level, dB FS | -78.3 |
-76.4 |
| DC offset, % | -0.0 |
-0.0 |

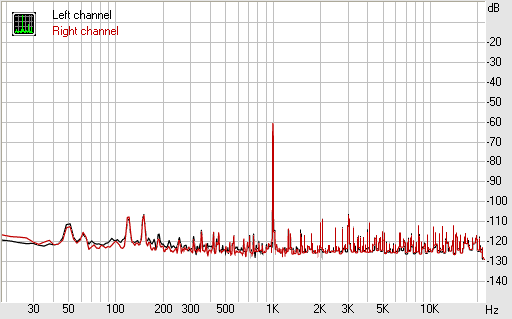

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +91.7 |
+91.7 |
| Dynamic range (A-weighted), dB | +92.4 |
+92.3 |
| DC offset, % | -0.00 |
-0.00 |

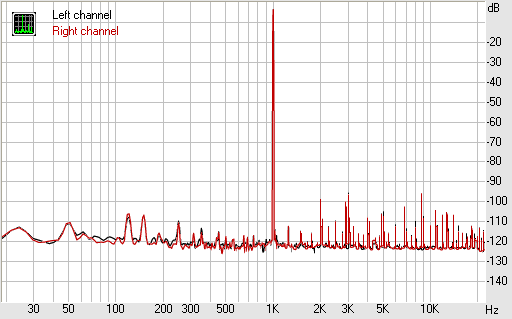

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0037 |
+0.0033 |
| THD + Noise, % | +0.0077 |
+0.0074 |
| THD + Noise (A-weighted), % | +0.0077 |
+0.0074 |

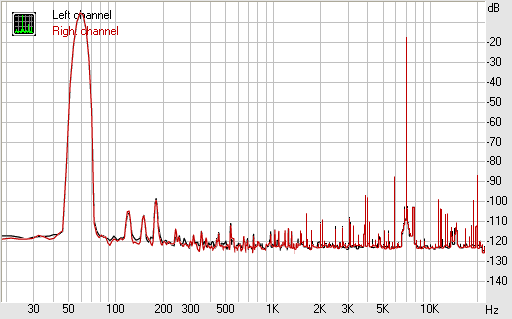

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0150 |
+0.0149 |
| IMD + Noise (A-weighted), % | +0.0131 |
+0.0130 |

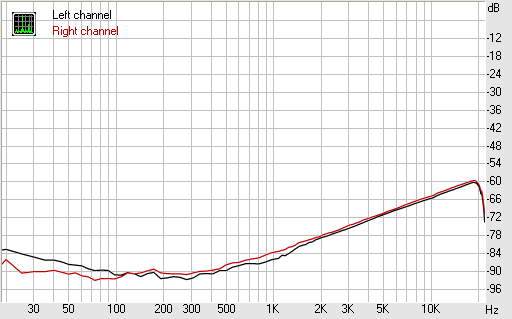

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -90 |
-91 |
| Crosstalk at 1000 Hz, dB | -85 |
-83 |
| Crosstalk at 10000 Hz, dB | -65 |
-64 |

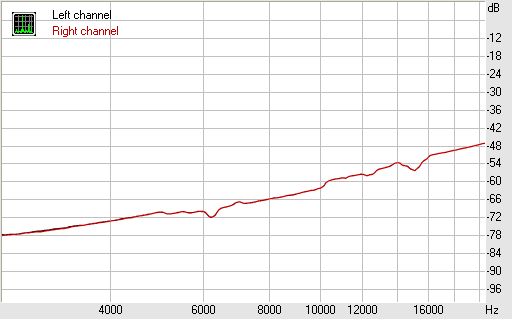

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0311 |
0.0310 |
| IMD + Noise at 10000 Hz, | 0.0789 |
0.0788 |
| IMD + Noise at 15000 Hz, | 0.1585 |
0.1584 |
