Speaker Implementation Sample

割と似たような組み合わせで自作されそうな例を10例ほど挙げてみました。
組み合わせて使いたいスピーカーユニット、ドライバがあれば、お問合せください
メールは info ＠ aedio.co.jp (＠を全角にして前後開けています)　または　03-3266-1071 です

• Sample #1 : 3way: Scan-Speak 15cm x 2 + 12cm Mid + Ring Dome Tweeter


  • Woofer: 15W/830K00 Treated PaperCone x 2
  • Midrange: 12M/4631G00 Paper cone Mid x 1
  • High: R2904/7000-00 Ring Dome Tweeter 29mm x 1
  • Schematic Diagram Impedance Curve Frequency Response Crossover


• Sample #2 :2way: Scan-Speak 15cm + Accuton C25-6-012 Ceramic Inverted Dome Tweeter


  • Woofer: 15W/830K00 Treated PaperCone x 1
  • High: Accuton C25-6-012 Ceramic Inverted Dome Tweeter 25mm x 1
  • Schematic Diagram Impedance Curve Frequency Response Crossover


• Sample #3: 3way: Scan-Speak 18cm Kevlar cone + Accuton C90-6-079 Ceramic Inverted Dome Midrange + Accuton C25-6-012 25mm Ceramic Inverted Dome Tweeter

  No Image
  • Woofer: Scan-Speak 18W/8546-00 18cm Kevlar Midbass x 1
  • Midrange: Accuton C90-6-079 90mm Inverted Dome Midrange x 1
  • High: Accuton C25-6-012 Ceramic Inverted Dome Tweeter 25mm x 1
  • Schematic Diagram Impedance Curve Frequency Response Crossover


• Sample #4: 2way: AudioTechnology 18H52 18cm Polycone Midbass and Accuton C25-6-012 Ceramic Inverted Dome Tweeter


  • Woofer: AudioTechnology C-Quenz 18H52 18cm Polycone Midbass x 1
  • High: Accuton C25-6-012 Ceramic Inverted Dome Tweeter 25mm x 1
  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #5: 2way: Accuton C173-6-095 Ceramic Inverted Dome Midbass and Accuton C25-6-012 Ceramic Inverted Dome Tweeter


  • Woofer: Accuton C173-6-191 18cm Ceramic Inverted Dome Midbass x 1
  • High: Accuton C25-6-012 Ceramic Inverted Dome Tweeter 25mm x 1
  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #6: 2way: SEAS ER15RLY 15cm Paper Cone and Scan-Speak D2905/9700-00 28mm Soft Dome Tweeter


  We have used this combination for almost 15 years for 2way reference speaker

  • Woofer: SEAS 14cm Paper Cone Midbass x 1
  • High: Scan-Speak D2905/9700-00 28mm Very Smooth Soft Dome Tweeter x 1
  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #7: 3way: Scan-Speak 18W8546 18cm Midbass + Accuton C90-6-079 90mm Ceramic Inverted dome Midrange + Accuton C25-6-012 25mm Ceramic Inverted Dome


  We had modified this network to match AudioTechnology 18I52x2 woofers , C90-6-079 and BD30-6-458 Diamond TW for main Demo system for 15 years.

  • Woofer: Scan-Speak 18W8546-00 18cm Kevlar Cone Midbass x 1
  • Midrange: Accuton C90-6-079 90mm Inverted Dome Midrange x 1
  • High: Accuton C25-6-012 Ceramic 25mm You may replace with C25-6-158 Cell 25mm x 1
  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #8: 2way: Most Simple 2way and good for Start Up SEAS 12cm and Vifa Ring Dome


  We love this simple design though lower frequency is NOT enough but Mid/high is very good for most of MUSIC

  • Woofer: SEAS 11cm Polycone Midbass used in DALI Menuet
  • High: Vifa(Tymphany) 19mm Ring Dome Tweeter x 1
  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #9: 2way: AudioTehnology Most Ordinary 2way for Music Lover


  This combination is similar to Sonus Faber Electa Amator (TW is different)
  If you like to This combination sounds after Sonus Faber Electa Amator you may try to use Morel ET338 instead of D2905/9700-00

  • Woofer: AudioTechnology C-Quenz 18H52 18cm Polycone Midbass x 1
  • High: Scan-Speak D2905/9700-00 28mm Very Smooth Soft Dome Tweeter


  • Schematic Diagram Impedance
    Frequency Response CrossOver

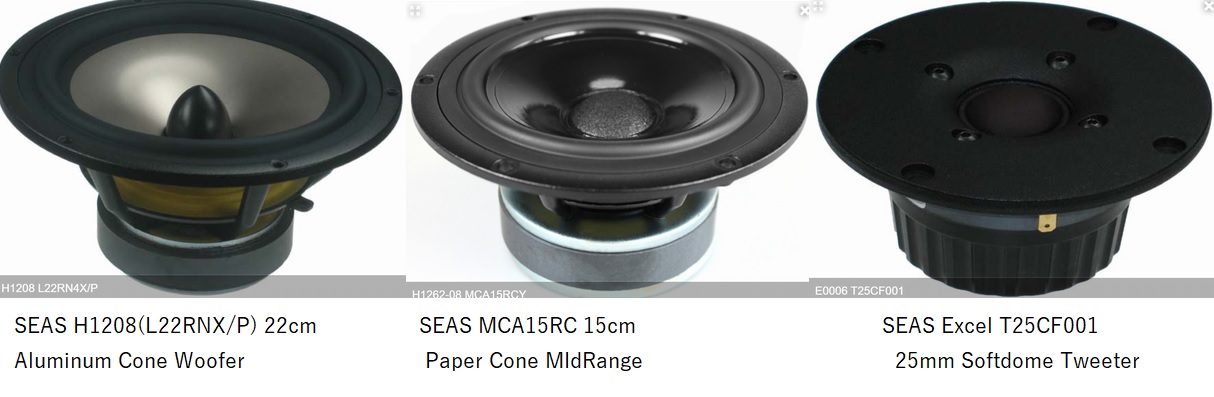

• Sample #10: 3way: Well Balanced SEAS not so epensive 3way for Music Lover


  This is EASY to build 3way

  • Woofer: SEAS 22cm Aluminum Cone Wooferx 2
  • Midrange: SEAS MCA15RCY 15cm Paper Cone Midrangex1
  • High: SEAS Excel T25CF001 25mm Softdome Tweeter

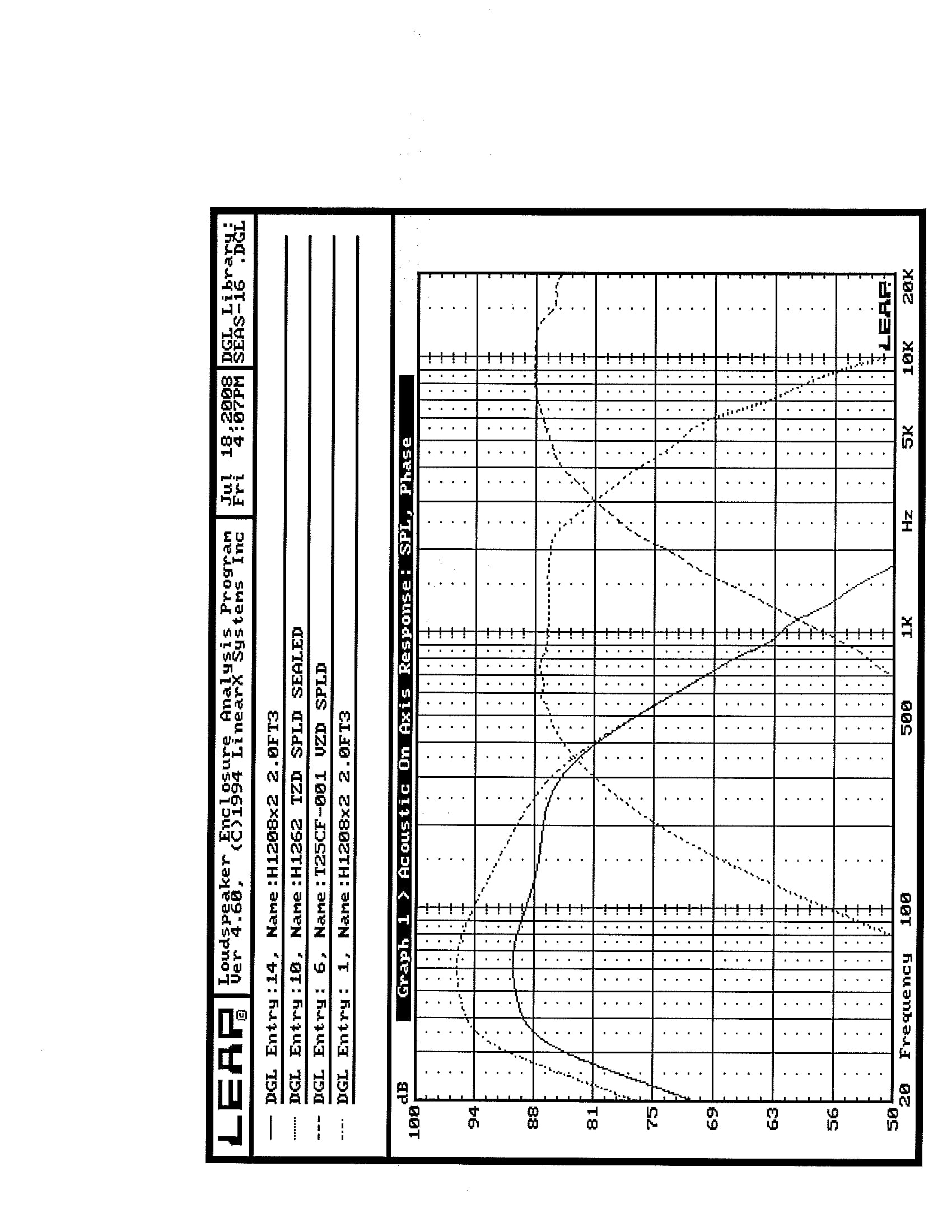

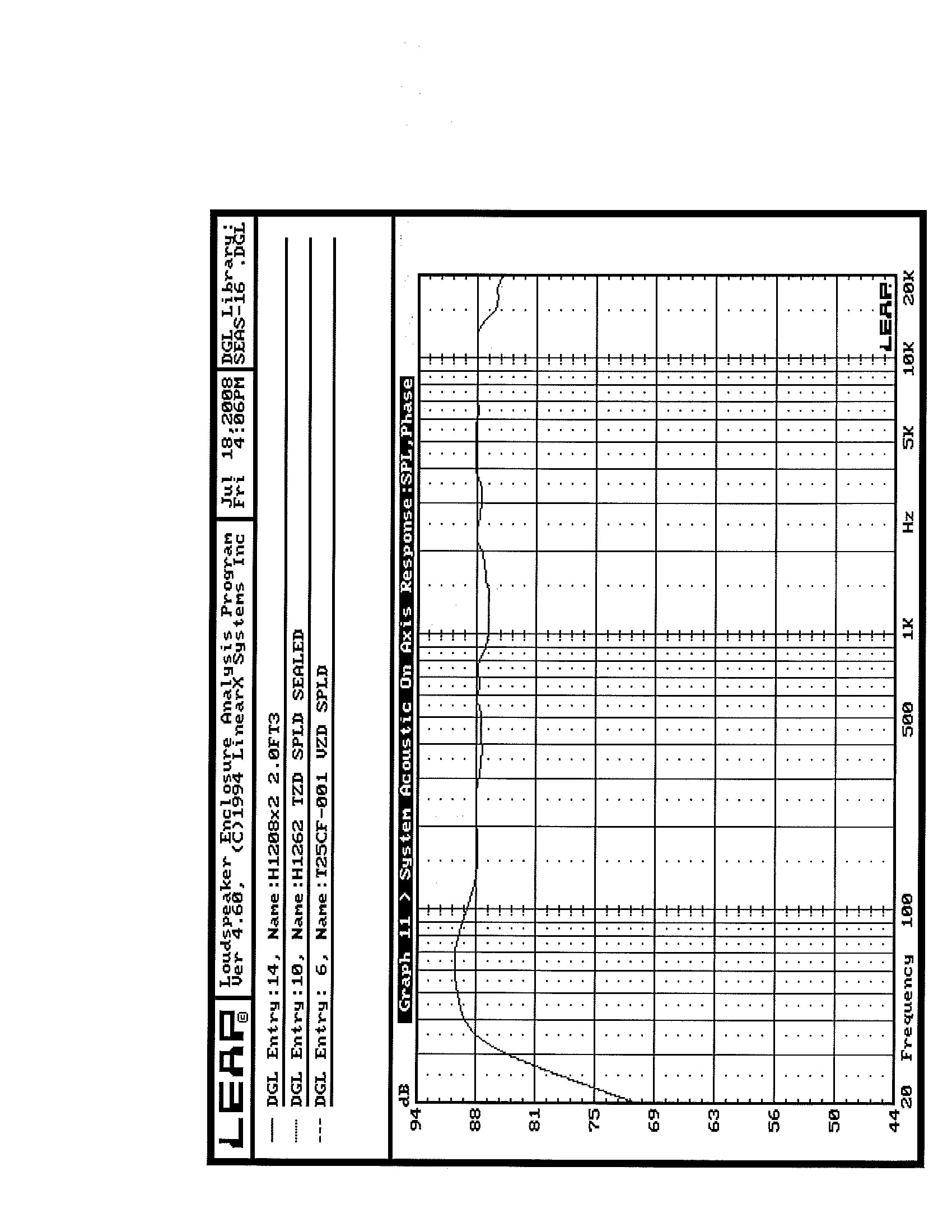

  • Schematic Diagram Impedance
    Frequency Response CrossOver

• Sample #11: 3way: 3way 6dB/oct Network using ESOTAR Series


  This is EASY to build 3way as Network is simplified.

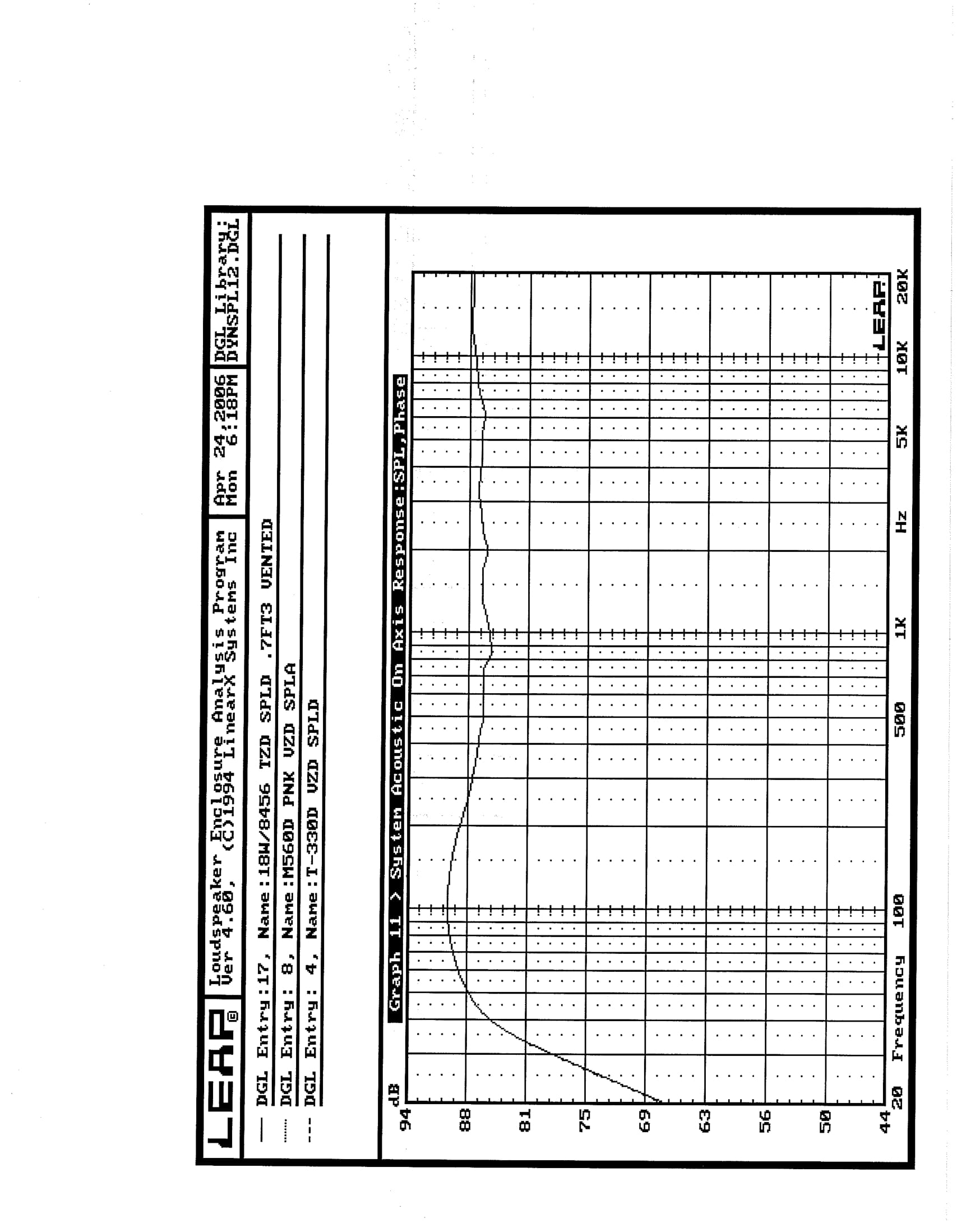

  • Woofer : Scan-Speak 18W/8546-00 18cm Kevlar + Dynaudio M560D 56mm Softdome Midrange + Dyanudio ESOTAR T330D 29mm Softdome Tweeter
  • Schematic Diagram Impedance
    Frequency Response CrossOver
